Restoring Quarry Tile Floors for Enhanced Breathability and Brightness

What distinguishes quarry tiles from other flooring options?

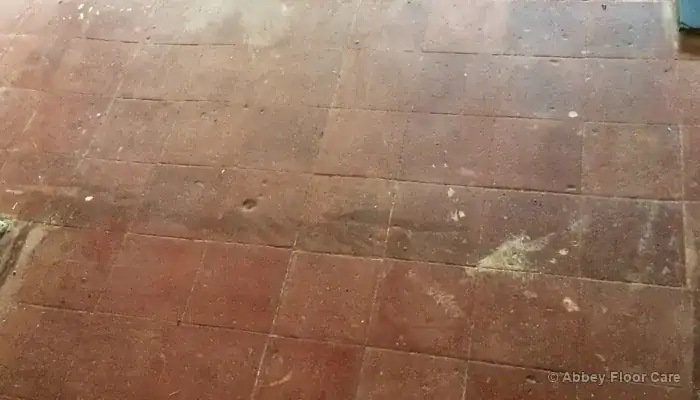

Understanding the Significance of the Clay Body

Quarry tiles are made from dense, unglazed clay that undergoes high-temperature firing, resulting in a strong moisture-active surface without a protective glaze. Unlike ceramic or porcelain tiles, quarry tiles lack a sealing glaze, making the clay body vulnerable to foot traffic, cleaning agents, and moisture right from the start. This ongoing cycle of moisture absorption and release is a fundamental feature of their design.

The clay body consists of fine mineral particles with voids that allow moisture vapour to pass through. This mechanism enables water vapour to rise from the subfloor, travel through the tile, and evaporate at the surface. In many historic UK homes, quarry tiles are laid directly on lime or compacted earth bases, often without a damp-proof membrane, promoting continuous and intentional moisture movement. Sealing this pathway disrupts the tile’s natural function rather than offering protection.

The Importance of the Firing Process

The temperature during the firing of quarry tiles affects their final density, colour, and porosity. Tiles fired at lower temperatures result in softer, more porous materials that quickly absorb liquids, frequently found in older Victorian and Edwardian homes. Conversely, tiles fired at higher temperatures yield denser structures with tighter voids, enhancing their resistance against liquid absorption while remaining unglazed and moisture-active. Both types fundamentally differ from glazed or polished flooring options.

This production method ensures that the colour of quarry tiles is an integral part of their structure, extending throughout the clay body instead of merely coating the surface. the colour cannot be scrubbed away like a painted finish. Over time, the surface texture may change due to wear, causing colour variations as contaminants accumulate within the tile. A floor that consistently appears dark is likely concealing ingrained contamination rather than reflecting its original clay hue.

The Implications of Absence of Glaze

Glazed tiles feature a glass-like layer that repels liquids, resists stains, and enables easy cleaning by keeping dirt on the surface. Quarry tiles, however, lack this protective layer; their open clay surface allows liquids to penetrate directly. Grease, cleaning residues, soil, and water seep into the tile body instead of remaining on the surface. Over time, these substances accumulate beneath the surface, making standard surface cleaning ineffective.

This explains why the typical cleaning approach — applying a product, mopping, and rinsing — consistently yields unsatisfactory results on quarry tiles. Cleaning agents only address residues on the surface while deeper layers of contamination persist. A floor cleaned consistently for years can still retain decades worth of ingrained contamination since conventional cleaning solutions do not penetrate deeply enough to eliminate it. Recognising the necessity for professional deep cleaning is essential for the effective maintenance of these floors.

This quarry tile hub provides comprehensive information on the entire lifecycle of these floors, from quarry tile fundamentals to cleaning, restoration, and sealing guidelines for all conditions.

The Role of Moisture Vapour Transmission and the Dangers of Blocking It

Moisture vapour transmission refers to the continuous movement of water vapour through the subfloor, tile, and into the living space. In a properly functioning quarry tile floor, this process occurs invisibly and without causing damage. The floor breathes effectively, maintaining stability while salts carried by moisture either evaporate harmlessly at the surface or disperse through the open clay structure.

When moisture transmission is obstructed, often due to a film-forming sealer that blocks the tile's pores, moisture accumulates beneath the surface. This build-up can result in blistering, peeling, or discolouration. Salts deposited from trapped moisture create white crystalline deposits known as efflorescence. Additional cleaning efforts cannot resolve this issue; the core problem lies in the blocked breathability, necessitating the removal of the coating to restore the tile's moisture movement.

Recognising Embedded Contamination and Its Hidden Accumulation

Embedded contamination comprises grease, soil, organic matter, and residues that have infiltrated the clay body over years of use. Unlike recent spills, this contamination isn’t visible on the surface. Instead, it manifests as general darkening, persistent dullness, or a floor that never appears clean despite cleaning efforts. Heavily contaminated floors may feel slightly sticky due to old wax and grease residues trapped in the upper layers of the clay body.

This accumulation occurs gradually and often goes unnoticed. Each meal prepared, every muddy shoe, and every application of general cleaning product contributes to a layer of residue absorbed by the tile. Over a decade or two, this leads to contamination that cannot be eliminated by surface cleaning products. Addressing it requires specialised chemistry that penetrates into the clay body, typically through controlled alkaline cleaning with wet vacuum extraction, targeting the contamination directly rather than merely treating the surface.

Why does the surface remain dirty even after cleaning?

If your quarry tile floor appears dirty after mopping, it is likely that the contamination has infiltrated the clay body itself. At this point, traditional cleaning methods cease to yield visible results, and persisting with the same techniques will not alter the outcome. The floor isn’t unresponsive because it’s beyond repair; it’s unresponsive because the cleaning efforts are targeting the incorrect layer.

Residue cycling occurs when each cleaning session disturbs surface contamination without actually removing the embedded layer. The floor may seem cleaner immediately after mopping, but it returns to its dull state within hours as the surface dries and the underlying layer re-emerges. This cycle can continue for years without improving the underlying condition. The deep cleaning process for quarry tiles effectively addresses the embedded layer rather than repeatedly treating the surface, leading to immediate and lasting improvements.

What elements influence the varying appearances of quarry tiles in different properties?

Repetitive cleaning that yields no visible results does not indicate a failure in technique; it signifies that soil has already permeated below the surface layer. To diagnose this issue, understanding why two quarry tile floors in similar conditions can exhibit significantly different appearances is essential. Variations in manufacturing greatly impact both the appearance and performance of the tiles.

Quarry tiles fired at higher temperatures yield denser materials with tighter clay structures. These tiles are slower to absorb liquid, retain their colour under foot traffic more consistently, and resist surface abrasion better over time. Conversely, tiles fired at lower temperatures tend to have a more open structure, absorb liquids more readily, and show signs of embedded contamination sooner. Both types remain unglazed and moisture-active, but the speed at which problems arise varies considerably.

Why does dirt penetrate the tile instead of remaining on the surface?

Capillary action draws grease and soil into a quarry tile instead of allowing them to rest on the surface. The open clay structure facilitates the inward movement of liquid contamination under regular foot traffic. Each step applies pressure that drives liquid residues into the surface voids. Grease from cooking, soil tracked in on shoes, and residues from cleaning products all enter the tile body through this process. Once inside, they become inaccessible to surface cleaning.

Over time, the voids in the upper clay layers become increasingly filled. The tile darkens from within, and residue cycling begins — each cleaning disrupts surface contamination but fails to reach the underlying layers. The floor becomes slower to absorb new contamination as the upper voids fill, but the existing embedded layer does not diminish without targeted intervention.

The practical implication is that cleaning frequency alone cannot compensate for insufficient cleaning depth. A floor cleaned daily with a general-purpose product may still develop a significant embedded contamination layer over five to ten years. The maintenance routine that prevents this issue includes using correctly formulated pH-neutral cleaning solutions, avoiding detergents that leave their own residues, and removing grit before wet mopping to minimise surface abrasion and contamination issues.

Why do standard cleaning products become ineffective over time?

If your usual floor cleaner was effective during the first year or two but now seems to lack impact, it’s likely that the contamination layer has moved beyond the reach of surface-acting products. General-purpose floor cleaners are designed to tackle residues at or near the surface and are not formulated to penetrate the porous clay body to lift long-standing contamination. Once contamination becomes embedded, these products only maintain surface cleanliness without resolving the underlying issues.

Many household cleaners also leave behind their own residues — surfactants, fragrances, and pH-adjusting agents that the tile absorbs alongside the soil they aim to eliminate. This accelerates the residue cycling process and can lead to a surface that feels slightly sticky or appears consistently dull, regardless of recent cleaning. The chemistry required to penetrate the clay body, rather than just the surface, employs controlled alkaline concentrations, mechanical agitation, and wet extraction — a process that general-purpose products are neither designed nor intended to replicate.

How can selecting an unsuitable sealer harm your floor?

Applying a film-forming sealer on a moisture-active quarry tile floor does not provide protection; rather, it traps the moisture that the floor needs to release. Film-forming products create a physical barrier across the tile's pores. While suitable for modern glazed tiles, this approach is detrimental for unglazed quarry tiles resting on a moisture-active base, resulting in sealer failure, efflorescence, and accelerated deterioration.

Properly sealing a quarry tile floor involves facilitating moisture movement rather than obstructing it.

The progression of breathability failure follows a predictable pattern. Initially, the sealer may appear effective. Within months, moisture vapour accumulating beneath the coating leads to blistering or milky patches. The coating may peel or deteriorate unevenly. Salts from trapped moisture create white crystalline patches on the surface. Homeowners often clean the floor again, frequently applying more product, exacerbating the issue. Throughout this process, the tile remains undamaged; however, restoring proper moisture vapour transmission necessitates professional intervention. An impregnating sealer, which penetrates the tile body rather than resting on top, allows moisture to move while protecting the internal structure from further contamination.

What signs indicate that quarry tile floors are deteriorating?

White powder on the tile surface, inconsistent finishes that return after cleaning, and coatings that peel without clear explanation are interconnected symptoms of the same underlying issue. Each indicates a specific stage of deterioration, and recognising these signs is crucial for understanding the floor's condition.

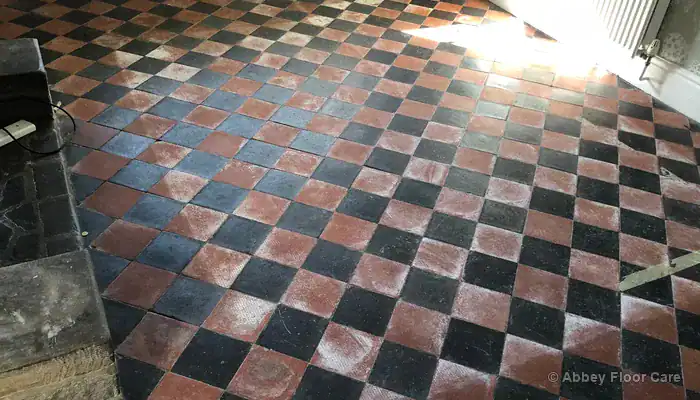

Efflorescence, the white crystalline or powdery deposit that forms when moisture carries dissolved salts to the surface, indicates active moisture movement. This often suggests that something above — whether a surface coating or incompatible sealer — is obstructing the evaporation pathway. Homeowners notice a chalky white residue that reappears shortly after cleaning.

Salt migration produces a similar visible effect but occurs deeper within the tile, depositing mineral compounds inside the clay structure rather than on the surface. Over time, this causes the tile surface to appear progressively lighter in affected areas. Sealer failure can be recognised through peeling, mottling, or uneven sheen, signalling areas where the coating has separated from the tile.

What maintenance is vital for maintaining a well-kept quarry tile floor?

If your quarry tile floor has undergone professional restoration, the subsequent maintenance routine will determine whether it remains in excellent condition or begins to deteriorate within months. The most crucial factor is using a pH-neutral cleaner specifically formulated for breathable natural tiles — avoiding general-purpose products and any cleaners containing bleach, vinegar, or surfactant residues that the tile will absorb. Choosing the wrong product can reactivate the residue cycling process from the outset.

Equally important is removing grit before wet mopping. Hard particles of sand and soil tracked indoors act as fine abrasives underfoot, accelerating surface wear in the upper clay layer. Dry sweeping or vacuuming before any wet cleaning helps prevent this. Resealing at appropriate intervals, typically every two to three years for an impregnating sealer depending on foot traffic, maintains internal protection without causing surface residue build-up.

When is regular maintenance insufficient for your floor's needs?

Persistent darkening that does not improve with proper cleaning products, white salts that return soon after removal, and coatings that repeatedly fail indicate that the floor requires professional evaluation rather than continued maintenance.

Use the following sequence to assess your floor's current state:

1. Clean the floor with a properly formulated pH-neutral product and allow it to dry thoroughly. If the darkening returns within 48 hours and the floor appears unchanged after cleaning, the contamination is embedded beneath the surface.
2. After removing any visible white deposits, check whether they reappear within a week. Rapid reappearance indicates active moisture movement combined with a blocked or partially obstructed evaporation pathway — this signals a sealer failure condition rather than a cleaning issue.
3. Inspect any coatings applied within the last two years. If the coating has begun to peel, mottle, or exhibit an uneven sheen in high-traffic areas, the product was likely incompatible with the floor's moisture movement profile, necessitating professional removal before further treatment.

What steps should you take based on your floor's condition?

Every issue with quarry tiles points to a specific component of the restoration system, and the appropriate starting point depends on the current state of the floor.

If the floor appears dirty after cleaning and the issue persists, begin with the deep cleaning process: deep cleaning quarry tiles to eliminate decades of grime outlines the complete procedure. If the floor shows white deposits, inconsistent finishes, or failing coatings, follow the restoration pathway: quarry tile restoration details the professional remediation process.
